1.General specification 基本事項

1.1 Switch action 開關種類：Slide Switch 輕觸開關

1.2 Switch rating 最大額定值：DC 12V，50mA

1.3 Operation temperature range 使用溫度試驗范圍：-30℃~+85℃

1.4 Preservative temperature range 保存溫度范圍：-40℃~+85℃

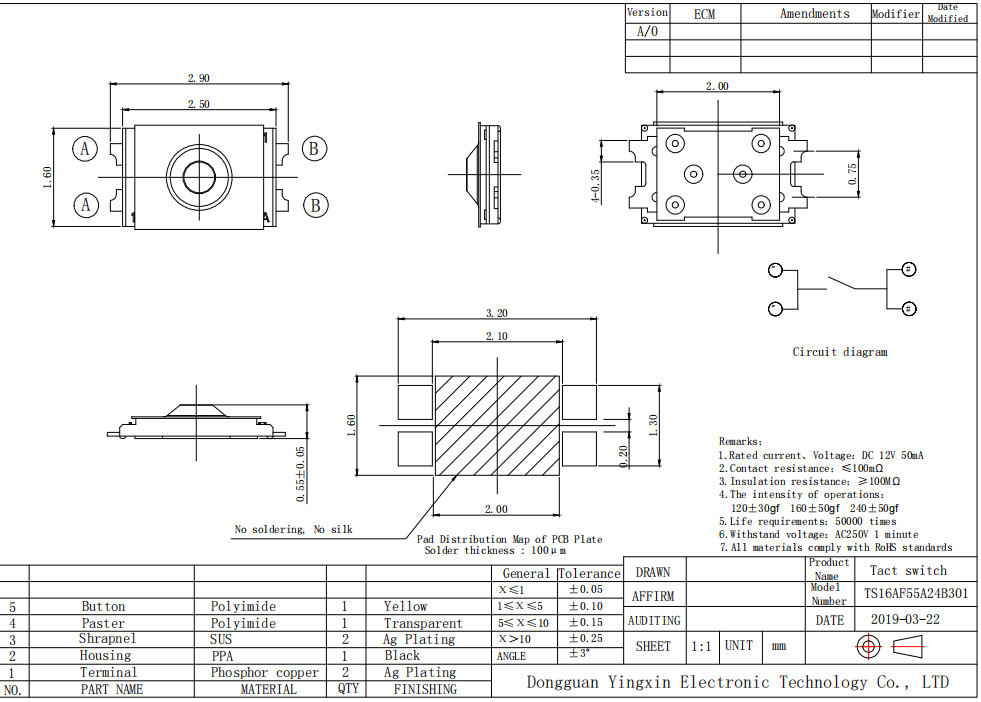

1.5 Appearance and dimensions：See outside drawing page 外形尺寸：見外形尺寸圖

1.6 Standard condition：Unless otherwise specified，the test and measurements shall be carried out as follows：試驗、測定狀態

Ambient temperature 溫度：5~35℃

Relative humidity 相對濕度：45~85%

Air pressure 氣壓：86~106KPa（860~1060mbar）

However，if doubt arises on the decision based on the measured

Values under the above-mentioned conditions，the following conditions be employed

但是在對判定產生疑義時，按下述狀態實施：

Ambient temperature 溫度：20±2℃

Relative humidity 相對濕度：65±5%

Air pressure 氣壓：86~106KPa（860~1060mbar）

1.6X2.6帶點 規格書.pdf
